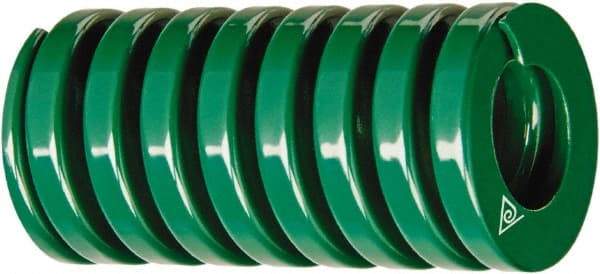

Associated Spring Raymond - 1-1/2" Hole Diam, 3/4" Rod Diam, 2-1/2" Free Length, Green Die Spring - 563 Lb Max Deflection, 1.2402" Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 52375706
Brand: Associated Spring Raymond
Model #: 303-710-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/2 |
| Rod Diameter (Inch) | 3/4 |
| Free Length (Inch) | 2-1/2 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 2504.35 |
| Maximum Deflection Load (Lb.) | 563.00 |
| Maximum Deflection (mm) | 31.50 |
| Maximum Deflection (Decimal Inch) | 1.2402 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
