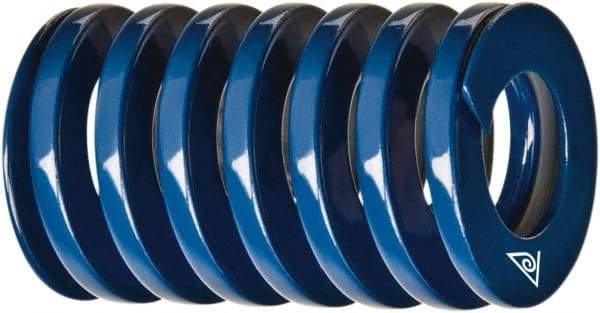

Associated Spring Raymond - 1-1/4" Hole Diam, 5/8" Rod Diam, 12" Free Length, Blue Die Spring - 507 Lb Max Deflection, 5.3228" Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 52375375
Brand: Associated Spring Raymond
Model #: 304-648-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/4 |
| Rod Diameter (Inch) | 5/8 |
| Free Length (Inch) | 12 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (N) | 2255.25 |
| Maximum Deflection Load (Lb.) | 507.00 |
| Maximum Deflection (mm) | 135.20 |
| Maximum Deflection (Decimal Inch) | 5.3228 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
