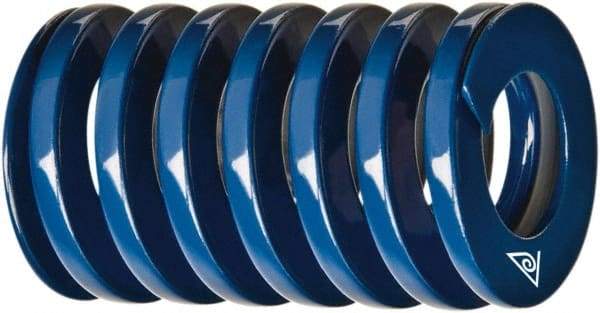

Associated Spring Raymond - 1-1/2" Hole Diam, 3/4" Rod Diam, 8" Free Length, Blue Die Spring - 706 Lb Max Deflection, 3.3071" Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 52374907
Brand: Associated Spring Raymond
Model #: 304-732-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/2 |
| Rod Diameter (Inch) | 3/4 |
| Free Length (Inch) | 8 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (N) | 3140.44 |
| Maximum Deflection Load (Lb.) | 706.00 |
| Maximum Deflection (mm) | 84.00 |
| Maximum Deflection (Decimal Inch) | 3.3071 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
