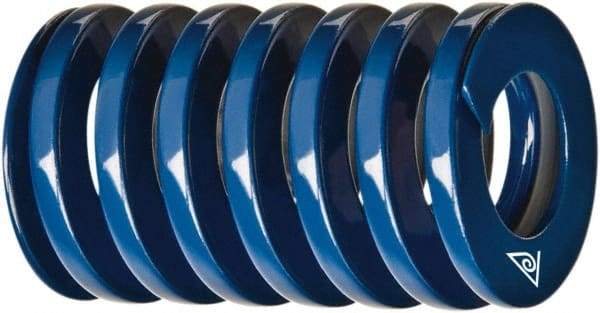

Associated Spring Raymond - 1-1/2" Hole Diam, 3/4" Rod Diam, 10" Free Length, Blue Die Spring - 725 Lb Max Deflection, 4.2244" Max Deflection, Medium Duty, Chromium Alloy Steel
Item #: 52372307
Brand: Associated Spring Raymond
Model #: 304-740-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/2 |
| Rod Diameter (Inch) | 3/4 |
| Free Length (mm) | 254.00 |
| Free Length (Inch) | 10 |
| Load Type | Medium-Duty |
| Color | Blue |
| Maximum Deflection Load (N) | 3224.96 |
| Maximum Deflection Load (Lb.) | 725.00 |
| Maximum Deflection (mm) | 107.30 |
| Maximum Deflection (Decimal Inch) | 4.2244 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
