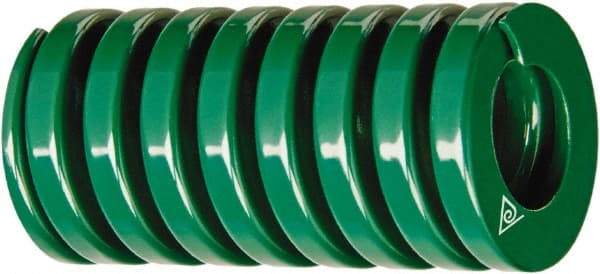

Associated Spring Raymond - 1-1/4" Hole Diam, 5/8" Rod Diam, 2" Free Length, Green Die Spring - 515 Lb Max Deflection, 1.2756" Max Deflection, Light Duty, Chromium Alloy Steel
Item #: 52371747
Brand: Associated Spring Raymond
Model #: 303-608-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 1-1/4 |
| Rod Diameter (Inch) | 5/8 |
| Free Length (Inch) | 2 |
| Load Type | Light-Duty |
| Color | Green |
| Maximum Deflection Load (N) | 2290.83 |
| Maximum Deflection Load (Lb.) | 515.00 |
| Maximum Deflection (mm) | 32.40 |
| Maximum Deflection (Decimal Inch) | 1.2756 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
