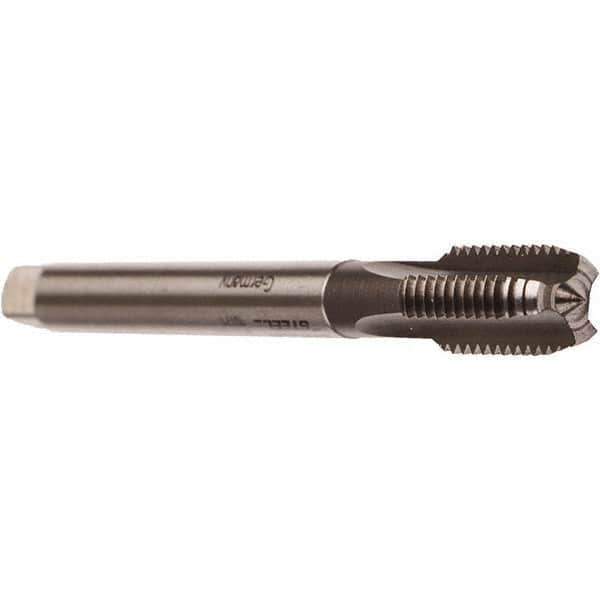

Emuge - M45x4.50 Metric Coarse 6HX 4 Flute Bright Finish Cobalt Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 220mm OAL, 58mm Thread Length, Oversize
Item #: 52306297
Brand: Emuge
Model #: C0101001.0145
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M45x4.50 |
| Class of Fit | 6HX |
| Number of Flutes | 4 |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 8.66140 |
| Overall Length (mm) | 220.00 |
| Oversize | No |
| Series/List | Rekord A |
| Thread Length (Decimal Inch) | 2.2835 |
| Thread Length (mm) | 58.00 |
| Shank Diameter (Decimal Inch) | 1.4173 |
| Shank Diameter (mm) | 36.00 |
| Shank Length (Decimal Inch) | 6.38 |
| Shank Length (mm) | 162 |
| Square Size (Decimal Inch) | 1.1417 |
| Square Size (mm) | 29.00 |
| Material Application | Copper Alloys; Steel |
