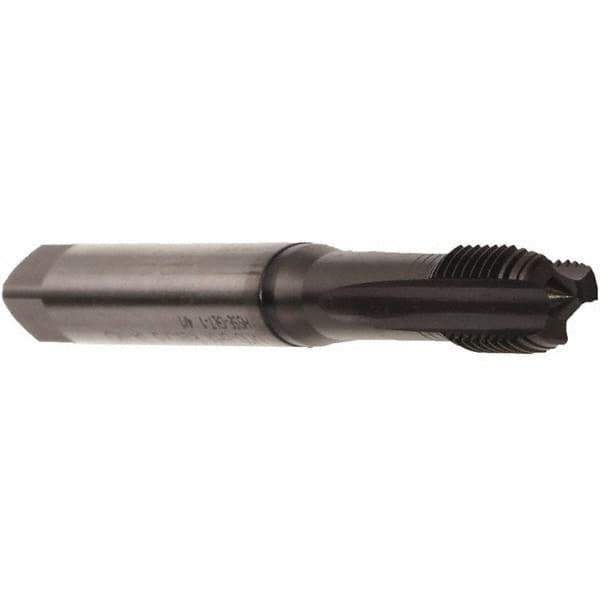

Emuge - M3x0.50 Metric Coarse 6HX 3 Flute GLT-1 Finish Cobalt Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 56mm OAL, 11mm Thread Length, Oversize
Item #: 52300373
Brand: Emuge
Model #: B010J601.0030
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
GLT-1 is a multi-layered coating that offers a hard surface coating and an anti-friction layer for fast and efficient chip removal. It is heat resistant, wear resistant and prevents sliding.GLT-1 is a proprietary coating exclusive to Emuge.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M3x0.50 |
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Chamfer | Modified Bottoming |
| Material | Cobalt |
| Finish/Coating | GLT-1 |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 2.20470 |
| Overall Length (mm) | 56.00 |
| Oversize | No |
| Series/List | Rekord A |
| Thread Length (Decimal Inch) | 0.4331 |
| Thread Length (mm) | 11.00 |
| Neck Length (mm) | 18.00 |
| Neck Length (Decimal Inch) | 0.7087 |
| Shank Diameter (Decimal Inch) | 0.1378 |
| Shank Diameter (mm) | 3.50 |
| Shank Length (Decimal Inch) | 1.50 |
| Shank Length (mm) | 38 |
| Square Size (Decimal Inch) | 0.1063 |
| Square Size (mm) | 2.70 |
| Material Application | Magnesium Alloys |
