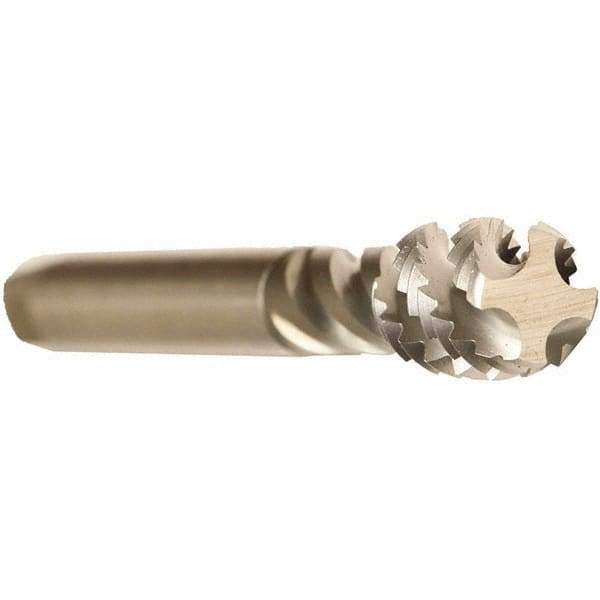

Emuge - M20x2.50 Metric 4 Flute 6H Bottoming Spiral Flute Tap - Cobalt, Bright Finish, 95mm OAL, Right Hand Flute, Right Hand Thread, Series Enorm
Item #: 52290749
Brand: Emuge
Model #: A0513500.0120
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M20x2.50 |
| Chamfer | Bottoming |
| Class of Fit | 6H |
| Number of Flutes | 4 |
| Material | Cobalt |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.7402 |
| Overall Length (mm) | 95.00 |
| Helix Angle | 45 |
| Thread Standard | Metric |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.9843 |
| Thread Length (mm) | 25.00 |
| Flute Type | Fast Spiral |
| Series/List | Enorm |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 16.00 |
| Shank Length (Decimal Inch) | 2.7559 |
| Shank Length (mm) | 70 |
| Material Application | Copper; Stainless Steel; Steel |
