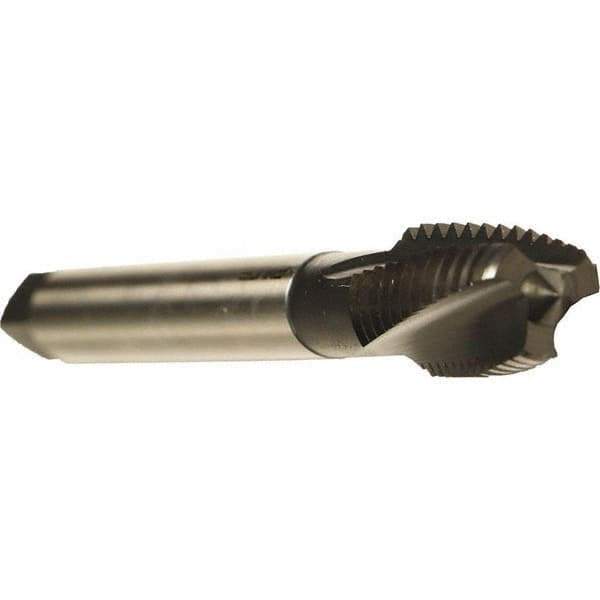

Emuge - 9/16-18 UNF 3 Flute 3BX Plug Spiral Flute Tap - Cobalt, Oxide Finish, 3-19/32" OAL, Left Hand Flute, Right Hand Thread, Series Rekord C
Item #: 52290657
Brand: Emuge
Model #: AU306011.5048
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Oxide, also known as black oxide or steam oxide, is a surface treatment that prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
Slow Spiral Flutes with 8-20 degree angles are used for tough materials like high nickel alloys, titanium and some series of stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 9/16-18 |
| Chamfer | Plug |
| Class of Fit | 3BX |
| Number of Flutes | 3 |
| Material | Cobalt |
| Finish/Coating | Oxide |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.5938 |
| Overall Length (Inch) | 3-19/32 |
| Helix Angle | 15 |
| Thread Standard | UNF |
| Oversize | No |
| Thread Length (Decimal Inch) | 0.8660 |
| Flute Type | Slow Spiral |
| Series/List | Rekord C |
| Shank Diameter (Decimal Inch) | 0.4290 |
| Shank Length (Decimal Inch) | 2.7240 |
| Material Application | Cast Iron; Cobalt Alloys; Copper Alloys; Nickel; Nickel Alloys; Stainless Steel; Steel; Titanium; Titanium Alloys |
