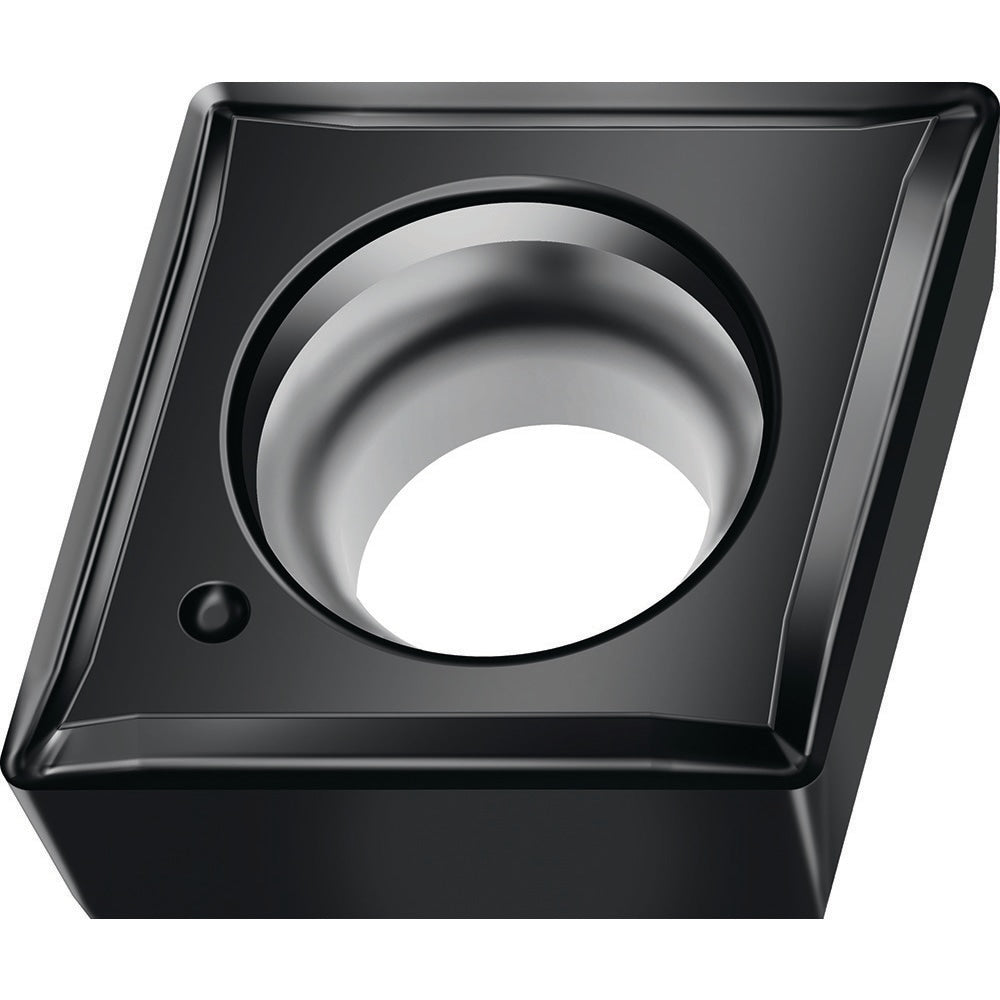

Turning Insert: CCGT21.51FL2 WSM01, Carbide
Item #: 91722082
Brand: Walter
Model #: 8369463
Product Specifications
| ANSI Insert Code | CCGT2(1.5)1 |
| ISO Insert Code | CCGT060204 |
| Relief Angle | 7.000 |
| Insert Style | CCGT |
| Corner Radius (mm) | 0.40 |
| Included Angle | 80.00 |
| Manufacturer Grade | WSM01 |
| Coating/Finish | TiAlN/THL |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 2.38 |
| Series | CCGT |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 80° |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Special, Super Alloys (S) - High Wear-Resistance; Hardened Materials (H) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Steel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.8000 |
| Maximum Depth of Cut (mm) | 1.50 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Length (mm) | 6.45 |
| Manufacturers Catalog Number | CCGT060204-FL2 WSM01 |
| Chip Breaker | FL2 |
| Width (mm - 2 Decimals) | 6.35 |
| ANSI Size Code | 2(1.5)1 |
| ISO Size Code | 060204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 06 |
| Country of Origin | Germany |
