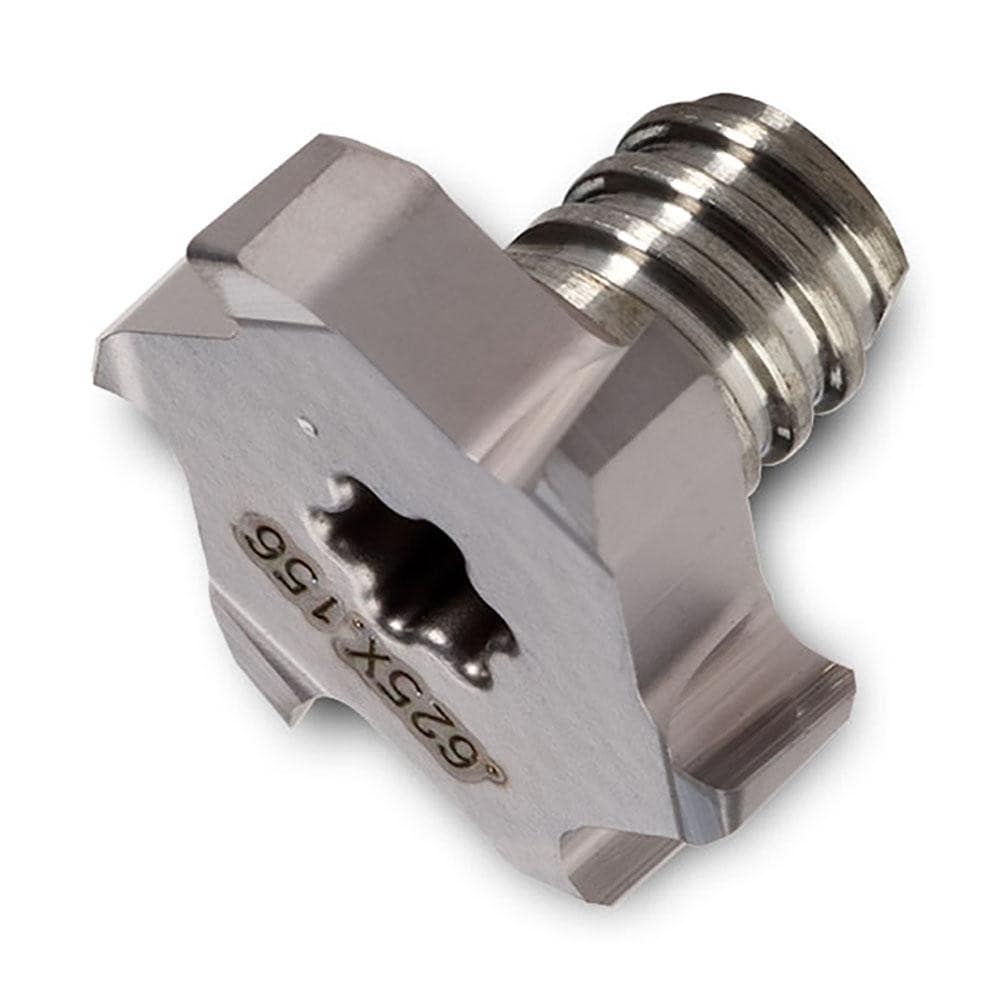

T-Slot Milling Tip Insert: T-Slot IN1030, Carbide
Item #: 07276041
Brand: Ingersoll Cutting Tools
Model #: 5840264
Product Specifications
| Milling Tip Type | T-Slot |
| Milling Tip Style | 18T |
| Maximum Depth of Cut (Decimal Inch) | 0.125 |
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Tool Material | Carbide |
| Manufacturer Grade | IN1030 |
| Series | Chip Surfer |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.1500 |
| Cutting Width (Decimal Inch) | 0.1560 |
| Functional Length (Decimal Inch) | 0.1740 |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Milling Tip Full Description | T-Slot |
| Thread Size | T06 |
| Manufacturers Catalog Number | 18T-6216T6RN01 IN1030 |
| Overall Length (Decimal Inch) | 0.1740 |
| Helix Angle | 0 |
| Coolant Through | No |
| Material Grade | C1/C2/C6 |
| Included Angle Degree | 90 |
| Coating/Finish | TiCN |
| UNSPSC Code | 23291601 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1250 |
| Number Of Flutes | 6 |
| Extension From Holder (Inch) | 0.1740 |
