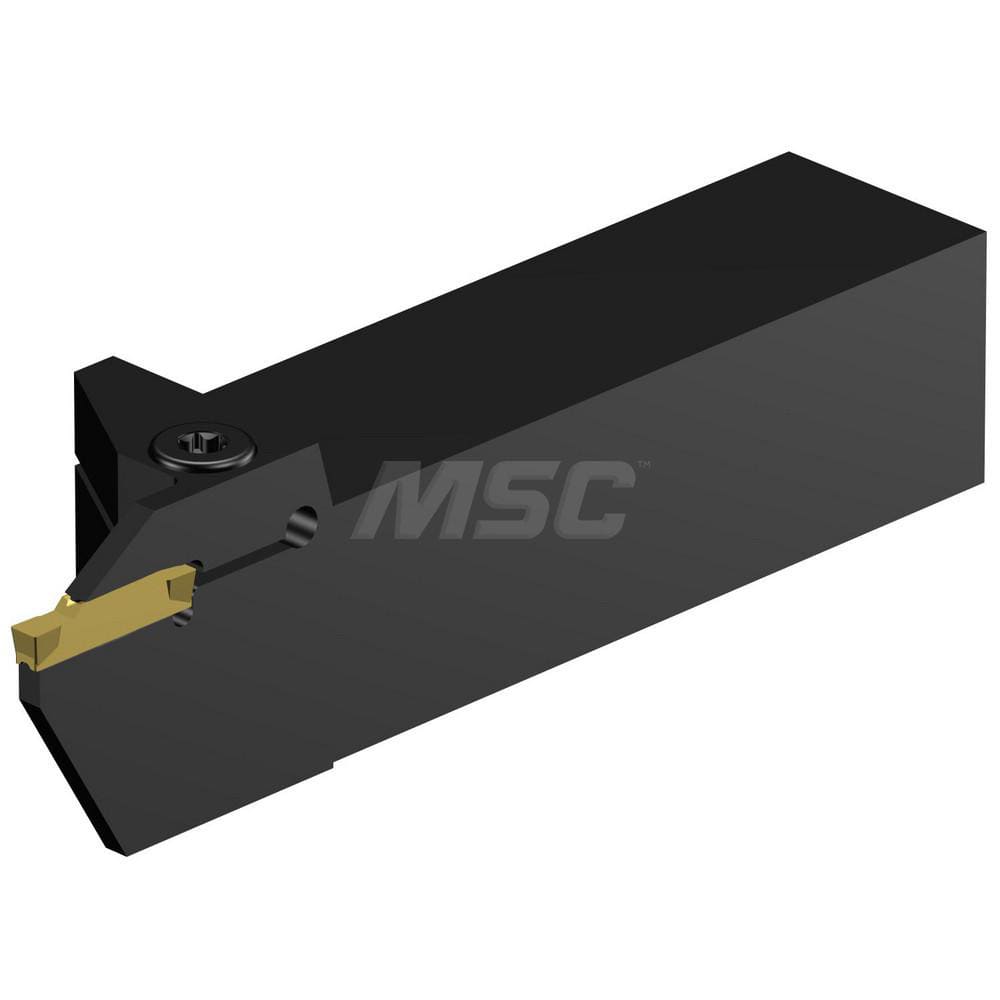

24.89mm Max Depth, 3.96mm to 5mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 6″ OAL, 1-1/4″ x 1-1/4″ Shank, Uses N123H2-0400-CM Inserts, RF123..B Toolholder, Series CoroCut 1-2
Item #: 52080462
Brand: Sandvik Coromant
Model #: 5740783
Product Specifications
Internal or External | External |
Cutting Direction | Right Hand |
Maximum Depth of Cut (Decimal Inch) | 0.9800 |
Maximum Depth of Cut (mm) | 24.89 |
Hand of Holder | Right Hand |
Maximum Groove Width (mm) | 5.00 |
Minimum Groove Width (Decimal Inch) | 0.1559 |
Minimum Groove Width (mm) | 3.96 |
Toolholder Style | RF123..B |
Insert Holding Method | Clamp |
Compatible Insert Size Code | N123H2 |
Insert Compatibility | N123H2-0400-CM |
Shank Height (mm) | 31.75 |
Shank Height (Inch) | 1-1/4 |
Shank Height (Decimal Inch) | 1.2500 |
Shank Length (mm) | 105.41 |
Shank Length (Decimal Inch) | 4.1500 |
Shank Width/Diameter (Decimal Inch) | 1.2500 |
Shank Width/Diameter (mm) | 31.75 |
Shank Width/Diameter (Inch) | 1-1/4 |
Series | CoroCut 1-2 |
Overall Length (mm) | 152.40 |
Cutting Tool Application | Grooving; Cut-Off; Parting |
Maximum Overhang (Inch) | 1.8500 |
Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
Head Height (Decimal Inch) | 1.2500 |
Head Height (mm) | 31.75 |
Head Length (Decimal Inch) | 1.2500 |
Head Length (mm) | 31.75 |
Manufacturers Catalog Number | RF123H098-20BM |
Coolant Through | No |
