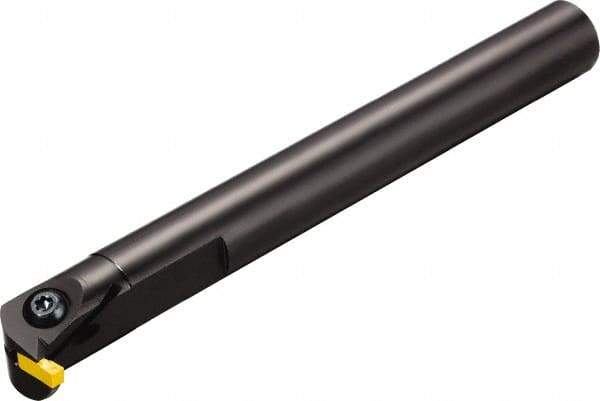

Sandvik Coromant - 25mm Min Bore Diam, 7" OAL, 3/4" Shank Diam, AG151.32 Indexable Boring Bar - N151.3-265-25-4G Insert, Screw Clamping Holding Method
Item #: 52080389
Brand: Sandvik Coromant
Model #: 5739246
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | AG151.32 |
| Series | T-Max Q-Cut |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.9843 |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.9843 |
| Minimum Bore Diameter (mm) | 25.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.9843 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 177.80 |
| Overall Length (Inch) | 7 |
| Overall Length (Decimal Inch) | 7.0000 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | N151.3-265-25-4G |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw Clamping |
| Rake | Neutral |
| Neck Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 0 |
| Neck Diameter (Inch) | 3/4 |
| Back of Bar to Cutting Edge (mm) | 177.80 |
| Back of Bar to Cutting Edge (Decimal Inch) | 7.0000 |
| Center to Cutting Edge (mm) | 14.61 |
| Center to Cutting Edge (Decimal Inch) | 0.5750 |
| Insert Thickness (Decimal Inch) | 0.2082 |
| Rake Angle | 0 |
| Complete Insert Compatibility | N151.3-265-25-4G |
| Toolholder Material | Steel |
| Number of Inserts Included in Order | 0 |
