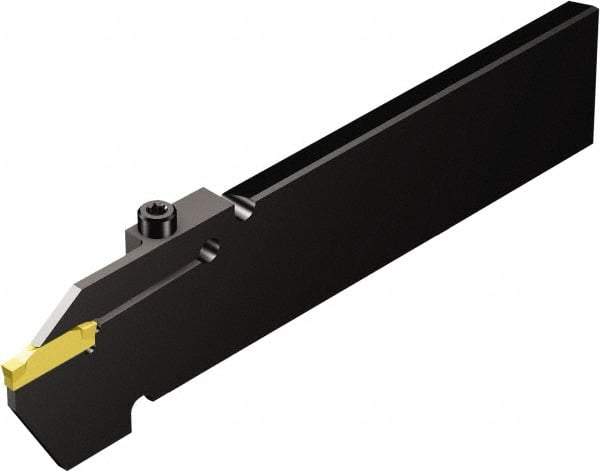

Sandvik Coromant - 25mm Max Depth of Cut, Right Hand Cut, Indexable Grooving Blade - 8.33mm Insert Width, G Seat Size, R/LF123..B1 (C) Insert Style, Series CoroCut 1-2
Item #: 51556652
Brand: Sandvik Coromant
Model #: 5740821
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Maximum Insert Width (mm) | 8.33 |
| Maximum Insert Width (Decimal Inch) | 0.3280 |
| Maximum Depth of Cut (mm) | 25.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.9843 |
| Series | CoroCut 1-2 |
| Maximum Workpiece Diameter (mm) | 50.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.9685 |
| Blade Height (mm) | 31.90 |
| Blade Height (Decimal Inch) | 1.2559 |
| Blade Overall Length (mm) | 150.00 |
| Blade Overall Length (Decimal Inch) | 5.9055 |
| Manufacturers Catalog Number | 5740821 |
| Insert Style | R/LF123..B1 (C) |
| Insert Seat Size | G |
| Cartridge Size | 25 |
| Complete Insert Compatibility | N123G2 0300-0003-TF |
