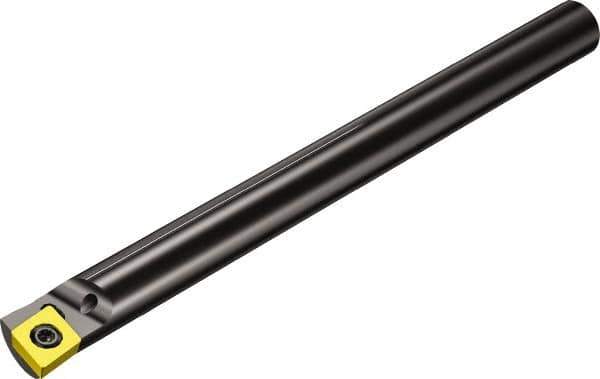

Sandvik Coromant - 19.6mm Min Bore Diam, 8" OAL, 5/8" Shank Diam, A-SCLC Indexable Boring Bar - CCMT 32.52 Insert, Screw Clamping Holding Method
Item #: 51144061
Brand: Sandvik Coromant
Model #: 5721904
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SCLC |
| Series | CoroTurn 107 |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.7717 |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.7717 |
| Minimum Bore Diameter (mm) | 19.60 |
| Minimum Bore Diameter (Decimal Inch) | 0.7717 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 203.20 |
| Overall Length (Inch) | 8 |
| Overall Length (Decimal Inch) | 8.0000 |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | CCMT 32.52 |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning; Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw Clamping |
| Rake | Neutral |
| Neck Diameter (Decimal Inch) | 0.6250 |
| Lead Angle | 0 |
| Neck Diameter (Inch) | 5/8 |
| Back of Bar to Cutting Edge (mm) | 203.20 |
| Back of Bar to Cutting Edge (Decimal Inch) | 8.0000 |
| Center to Cutting Edge (mm) | 10.31 |
| Center to Cutting Edge (Decimal Inch) | 0.4060 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | 0 |
| Complete Insert Compatibility | CCMT 32.52 |
| Toolholder Material | Steel |
| Number of Inserts Included in Order | 0 |
