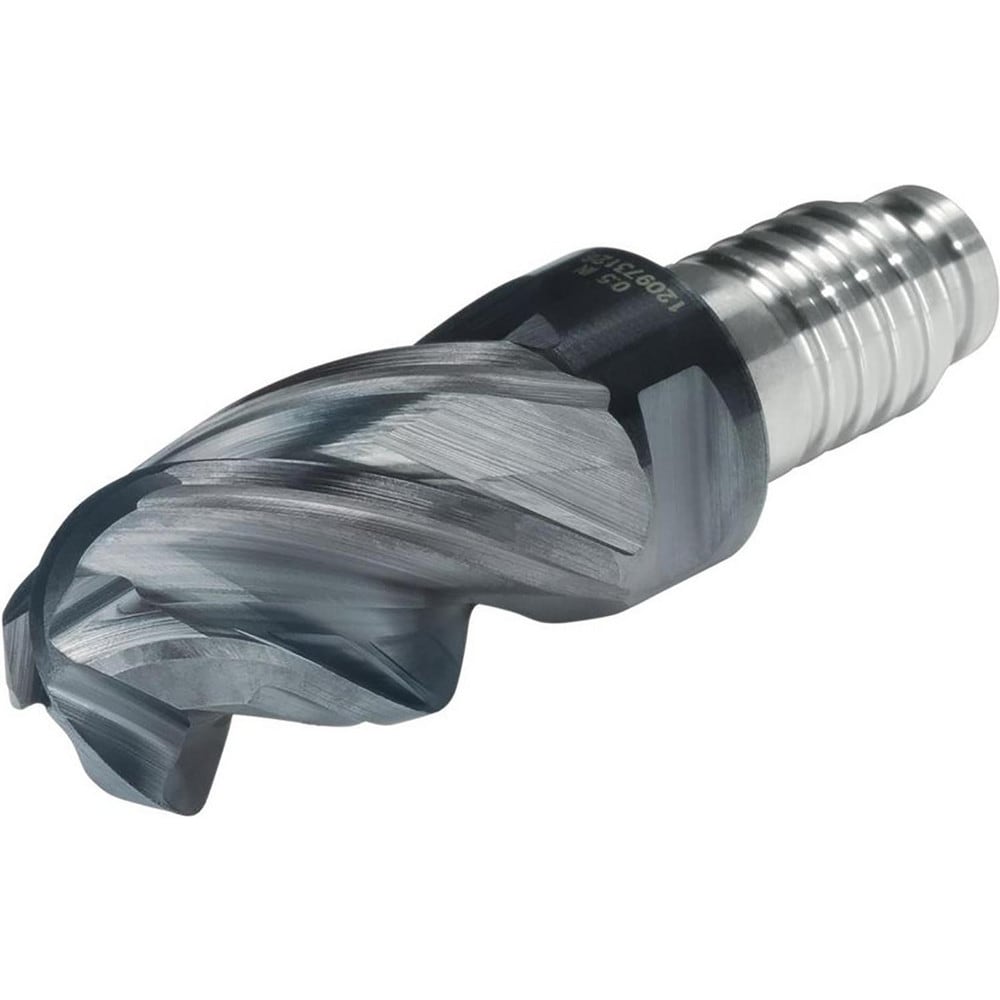

Ball End Mill Heads; Mill Diameter (mm): 25.00; Mill Diameter (Decimal Inch): 0.9843; Length of Cut (mm): 37.5000; Length Of Cut (Decimal Inch - 4 Decimals): 1.4764; Connection Type: Duo-Lock 25; Overall Length (Decimal Inch): 3.4606
Item #: 84773035
Brand: Kennametal
Model #: 7136732
Product Specifications
| Mill Diameter (mm) | 25.00 |
| Mill Diameter (Decimal Inch) | 0.9843 |
| Length of Cut (mm) | 37.5000 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.4764 |
| Connection Type | Duo-Lock 25 |
| Overall Length (Decimal Inch) | 3.4606 |
| Overall Length (mm) | 87.9000 |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Variable; Helical Flute |
| Helix Angle | 36 |
| Helix Style | Variable |
| Material Grade | Carbide |
| Maximum Helix Angle | 51 |
| Nose Radius (Decimal Inch) | 0.4921 |
| Series/List | Duo-Lock Harvi I TE |
| Undercutting | No |
| Number Of Flutes | 4 |
| Finish Coating | AlTiN |
| UNSPSC Code | 27112803 |
| Country of Origin | Israel |
