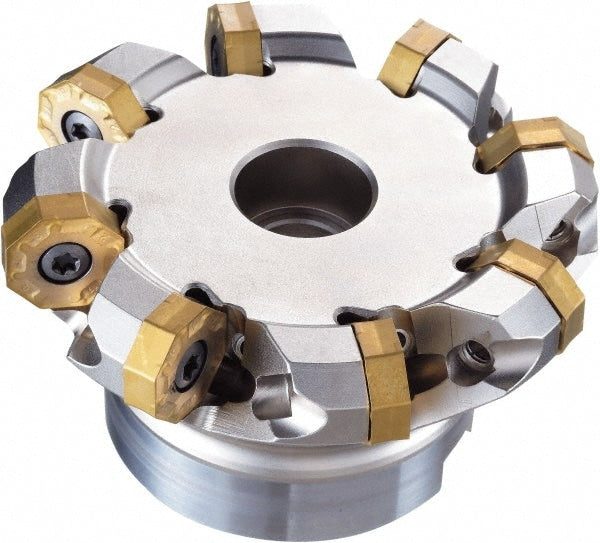

90.2mm Cut Diam, 1" Arbor Hole Diam, 50mm Max Depth, Indexable Square-Shoulder Face Mill
Item #: 55704639
Brand: OSG
Model #: 7802022
Product Specifications
| Maximum Cutting Diameter (Decimal Inch) | 3.5512 |
| Maximum Cutting Diameter (mm) | 90.20 |
| Maximum Depth of Cut (mm) | 50.00 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | XAHT06? |
| Cutter Style | PAO |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 45 |
| Series | 78120 |
| Overall Height (Mm - 5 Decimals) | 50.00 |
| Keyway Width (mm) | 9.50 |
| Hub Diameter (mm) | 60.00 |
| Keyway Depth (mm) | 6.00 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 8 |
| Maximum Cutting Diameter (Decimal Inch) | 3.5512 |
| Maximum Cutting Diameter (mm) | 90.20 |
| Maximum Depth of Cut (mm) | 50.00 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | XAHT06? |
| Cutter Style | PAO |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 45 |
| Series | 78120 |
| Overall Height (Mm - 5 Decimals) | 50.00 |
| Keyway Width (mm) | 9.50 |
| Hub Diameter (mm) | 60.00 |
| Keyway Depth (mm) | 6.00 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 8 |
| MSC Part # | 55704639 |
| Mfr Part # | 7802022 |
| Country of Origin Country of Origin is subject to change | Japan |
