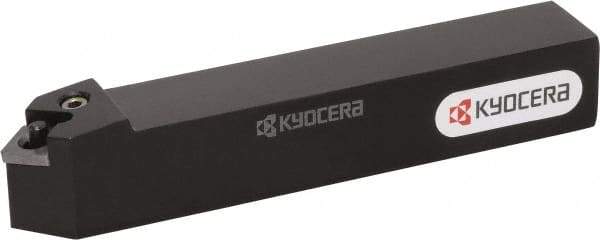

Kyocera - PSDN, Neutral Cut, 90° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 150mm OAL, SN.. 43.. Insert Compatibility, Series PSDN
Item #: 50481068
Brand: Kyocera
Model #: 8801981
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | PSDN |
| Rake | Negative |
| Rake Angle | -8.50 |
| Series | PSDN |
| Lead Angle | 90 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | SN.. 43.. |
| Multi-Use Tool | Yes |
| Multi-Use Application | Chamfering; External Turning |
| Insert Holding Method | Lock Pin |
| Back of Bar to Cutting Edge (mm) | 12.50 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4921 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Width (Inch) | 3/16 |
| Insert Width (Decimal Inch) | 0.1875 |
