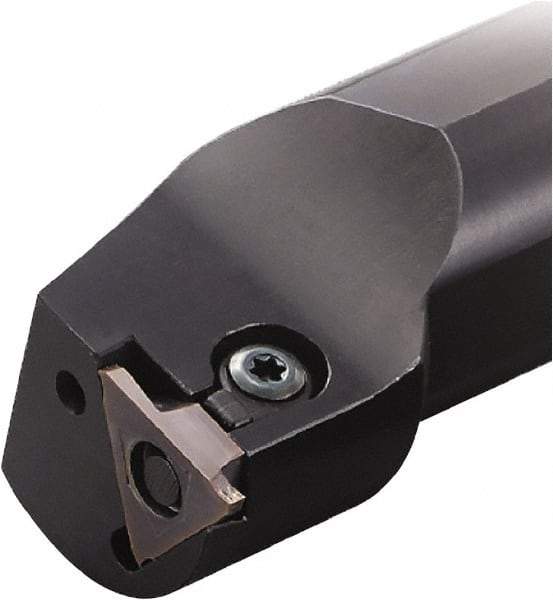

Kyocera - KIGBA, Internal, Right Hand, 0.12" Max Depth of Cut, 0.02 to 0.19" Groove Width, Indexable Grooving Tool Holder - GBA43R/L.. Insert Compatibility, 1.18" Shank Width, 10" OAL
Item #: 50480078
Brand: Kyocera
Model #: 8834810
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1200 |
| Minimum Groove Width (Decimal Inch) | 0.0200 |
| Maximum Groove Width (Decimal Inch) | 0.1900 |
| Overall Length (Decimal Inch) | 10.0000 |
| Toolholder Style | KIGBA |
| Insert Compatibility | GBA43R/L.. |
| Shank Width/Diameter (Decimal Inch) | 1.1800 |
| Series | KIGBA |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (Decimal Inch) | 1.5700 |
| Maximum Hole Depth (Decimal Inch) | 1.1800 |
| Maximum Bore Depth (Decimal Inch) | 1.1800 |
| Center to Cutting Edge (Decimal Inch) | 0.9000 |
| Head Length (Decimal Inch) | 1.1800 |
| Shank Length (Decimal Inch) | 8.8200 |
| Manufacturers Catalog Number | KIGBAR204 |
| Height to Shank Top (Decimal Inch) | 1.1800 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | GBA43R/L 031N; GBA43R/L 031R; GBA43R/L 047N; GBA43R/L 062N; GBA43R/L 072N; GBA43R/L 078MYN; GBA43R/L 078N; GBA43R/L 088N; GBA43R/L 125-010; GBA43R/L 125-020; GBA43R/L 140-020; GBA43R/L 145-020; GBA43R/L 150-010; GBA43R/L 150-020; GBA43R/L 170-020; GBA43R/ |
| Minimum Bore Diameter (Decimal Inch) | 1.5700 |
| Shank Diameter (Decimal Inch) | 1.2500 |
