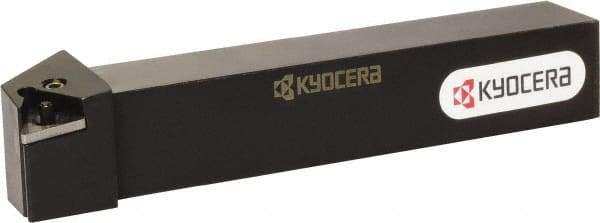

Kyocera - PTGN, Left Hand Cut, 90° Lead Angle, 12mm Shank Height x 12mm Shank Width, Negative Rake Indexable Turning Toolholder - 80mm OAL, TN.. 22.. Insert Compatibility, Series PTGN
Item #: 50418862
Brand: Kyocera
Model #: 8813055
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | PTGN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | PTGN |
| Lead Angle | 90 |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Insert Compatibility | TN.. 22.. |
| Multi-Use Tool | No |
| Insert Holding Method | Lock Pin |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6299 |
| Head Length (mm) | 18.00 |
| Head Length (Decimal Inch) | 0.7087 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
