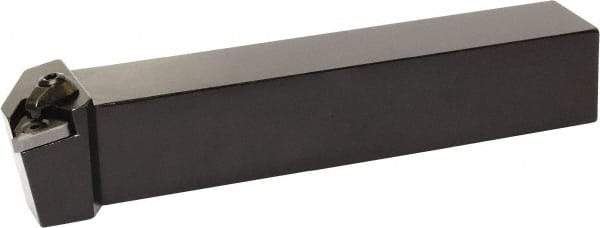

Kyocera - External Thread, Right Hand Cut, 25mm Shank Width x 25mm Shank Height Indexable Threading Toolholder - 150mm OAL, Various Insert Compatibility, KTN Toolholder
Item #: 50415660
Brand: Kyocera
Model #: 8806442
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Insert Compatibility | 22ER/L 08UN; 22ER/L 300ISO; 22ER/L 350ISO; 22ER/L 400ISO; 22ER/L 400TR; 22ER/L 450ISO; 22ER/L 500ISO; 22ER/L 500TR; 22ER/L N55; 22ER/L N60 |
| Toolholder Style | KTN |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 29.00 |
| Head Length (Decimal Inch) | 1.1417 |
| Shank Length (Decimal Inch) | 4.7638 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Shank Length (mm) | 121 |
