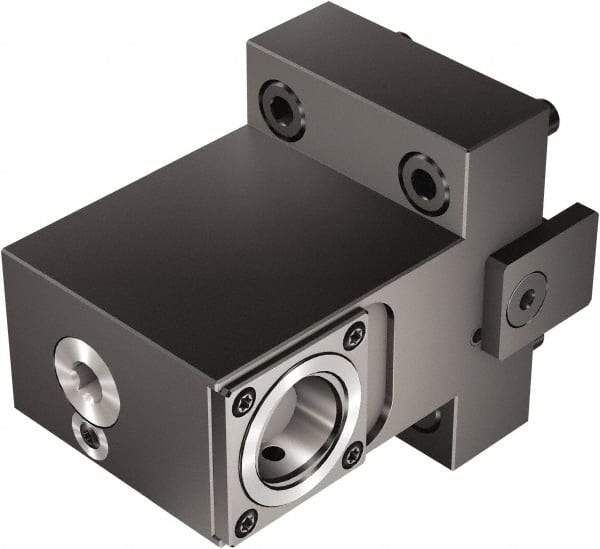

Sandvik Coromant - Left Hand Cut, C5 Modular Connection, Adapter/Mount Lathe Modular Clamping Unit - 50mm Square Shank Diam, 5.945" OAL, Through Coolant
Item #: 49685605
Brand: Sandvik Coromant
Model #: 6414796
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Clamping Unit Type | Adapter/Mount |
Connection Size | C5 |
Cutting Direction | Left Hand |
Shank Diameter (mm) | 50.00 |
Shank Diameter (Decimal Inch) | 1.9685 |
Through Coolant | Yes |
Head Height (mm) | 110.00 |
Head Height (Decimal Inch) | 4.3307 |
Overall Length (mm) | 151.00 |
Overall Length (Decimal Inch) | 5.94488 |
Head Length (Decimal Inch) | 4.1339 |
Head Length (mm) | 105.00 |
