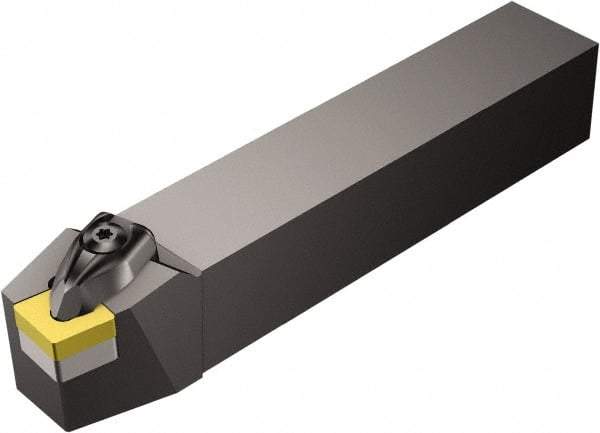

Sandvik Coromant - DCBNR/L, Right Hand Cut, 15° Lead Angle, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 170mm OAL, CNMG 16 06 12, CNMG 543 Insert Compatibility, Series T-Max P
Item #: 49679152
Brand: Sandvik Coromant
Model #: 5729462
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DCBNR/L |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | 15 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | CNMG 16 06 12; CNMG 543 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 170.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.6929 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Head Length (mm) | 41.60 |
| Head Length (Decimal Inch) | 1.6378 |
| Toolholder Material | Steel |
