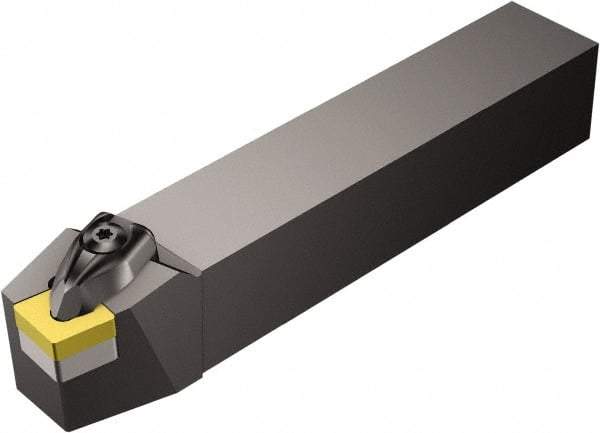

Sandvik Coromant - DCBNR/L, Right Hand Cut, 15° Lead Angle, 40mm Shank Height x 40mm Shank Width, Negative Rake Indexable Turning Toolholder - 250mm OAL, CNMG 19 06 12, CNMG 643 Insert Compatibility, Series T-Max P
Item #: 49679111
Brand: Sandvik Coromant
Model #: 5729475
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DCBNR/L |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | 15 |
| Shank Width (mm) | 40.00 |
| Shank Width (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Insert Compatibility | CNMG 19 06 12; CNMG 643 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 250.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 9.8425 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Head Length (mm) | 46.70 |
| Head Length (Decimal Inch) | 1.8386 |
| Toolholder Material | Steel |
