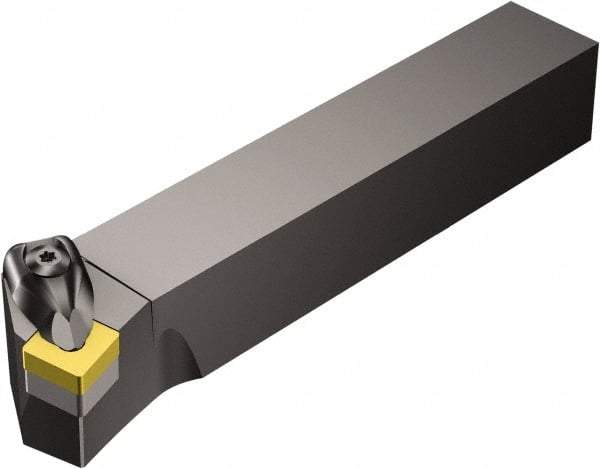

Sandvik Coromant - DSKNR/L, Right Hand Cut, 15° Lead Angle, 50mm Shank Height x 50mm Shank Width, Negative Rake Indexable Turning Toolholder - 306mm OAL, SNMG 25 07 24, SNMG 856 Insert Compatibility, Series T-Max P
Item #: 49678295
Brand: Sandvik Coromant
Model #: 5733887
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DSKNR/L |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | 15 |
| Shank Width (mm) | 50.00 |
| Shank Width (Decimal Inch) | 1.9685 |
| Shank Height (mm) | 50.00 |
| Shank Height (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 306.00 |
| Overall Length (Decimal Inch) | 12.0472 |
| Insert Compatibility | SNMG 25 07 24; SNMG 856 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 300.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 11.8110 |
| Center to Cutting Edge (Decimal Inch) | 2.3622 |
| Head Length (mm) | 35.20 |
| Head Length (Decimal Inch) | 1.3858 |
| Toolholder Material | Steel |
