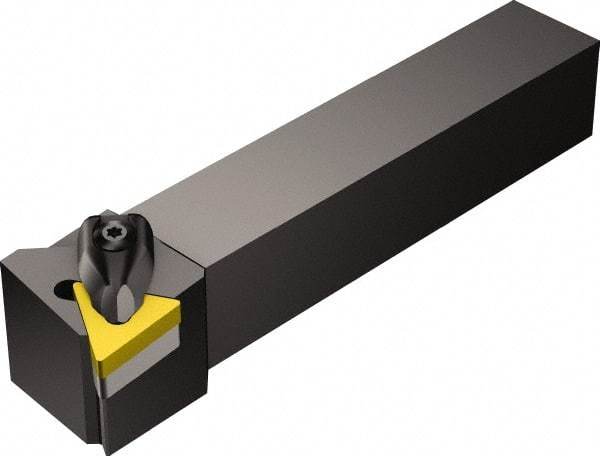

Sandvik Coromant - DTGNR/L, Left Hand Cut, -1° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 150mm OAL, TNMG 16 04 08, TNMG 332 Insert Compatibility, Series T-Max P
Item #: 49677800
Brand: Sandvik Coromant
Model #: 5731904
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DTGNR/L |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | -1 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | TNMG 16 04 08; TNMG 332 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9055 |
| Center to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 24.60 |
| Head Length (Decimal Inch) | 0.9685 |
| Toolholder Material | Steel |
