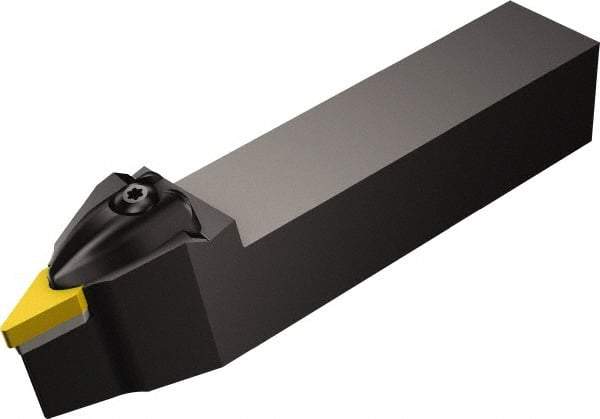

Sandvik Coromant - DVVNN, Neutral Cut, 17.5° Lead Angle, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 170mm OAL, VNMG 16 04 08, VNMG 332 Insert Compatibility, Series T-Max P
Item #: 49677511
Brand: Sandvik Coromant
Model #: 5732468
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | DVVNN |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | 17.5 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | VNMG 16 04 08; VNMG 332 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 170.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.6929 |
| Center to Cutting Edge (Decimal Inch) | 0.6535 |
| Head Length (mm) | 47.80 |
| Head Length (Decimal Inch) | 1.8819 |
| Toolholder Material | Steel |
