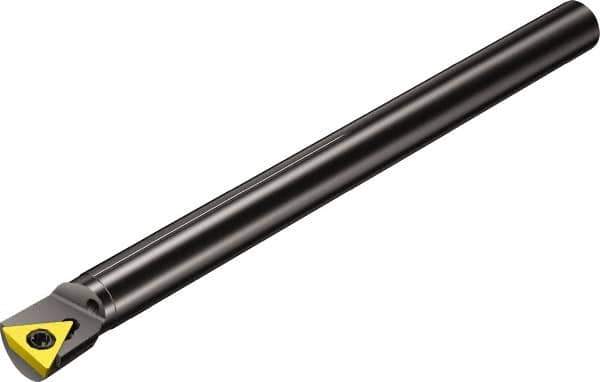

Sandvik Coromant - 10mm Min Bore Diam, 100mm OAL, 8mm Shank Diam, A..STFPR/L-R Indexable Boring Bar - TPMT 1.2(1.2)0, TPMT 06 T1 02 Insert, Screw or Clamp Holding Method
Item #: 49676604
Brand: Sandvik Coromant
Model #: 5721897
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A..STFPR/L-R |
| Series | CoroTurn 111 |
| Minimum Bore Diameter (mm) | 10.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.3937 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Insert Compatibility | TPMT 1.2(1.2)0; TPMT 06 T1 02 |
| Through Coolant | Yes |
| Insert Holding Method | Screw or Clamp |
| Rake | Neutral |
| Neck Diameter (Decimal Inch) | 0.3150 |
| Lead Angle | -1 |
| Back of Bar to Cutting Edge (mm) | 100.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 3.9370 |
| Center to Cutting Edge (mm) | 5.00 |
| Center to Cutting Edge (Decimal Inch) | 0.1969 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TPMT 1.2(1.2)0; TPMT 06 T1 02 |
| Toolholder Material | Steel |
