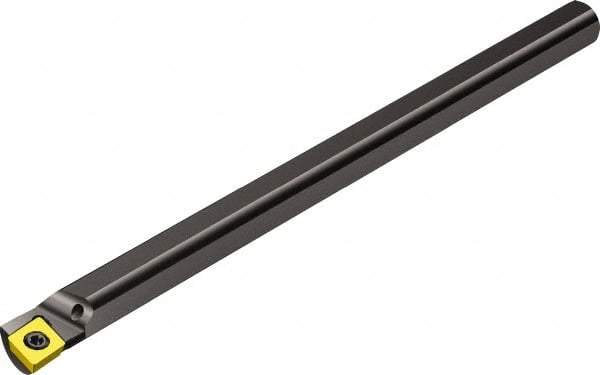

Sandvik Coromant - 10mm Min Bore Diam, 125mm OAL, 8mm Shank Diam, A..SCLPR/L Indexable Boring Bar - CPMT 2(1.5)1, CPMT 06 02 04 Insert, Screw or Clamp Holding Method
Item #: 49676596
Brand: Sandvik Coromant
Model #: 5721886
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A..SCLPR/L |
| Series | CoroTurn 111 |
| Minimum Bore Diameter (mm) | 10.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.3937 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Insert Compatibility | CPMT 2(1.5)1; CPMT 06 02 04 |
| Through Coolant | Yes |
| Insert Holding Method | Screw or Clamp |
| Rake | Neutral |
| Neck Diameter (Decimal Inch) | 0.3150 |
| Lead Angle | -5 |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (mm) | 5.00 |
| Center to Cutting Edge (Decimal Inch) | 0.1969 |
| Rake Angle | 0 |
| Complete Insert Compatibility | CPMT 2(1.5)1; CPMT 06 02 04 |
| Toolholder Material | Steel |
