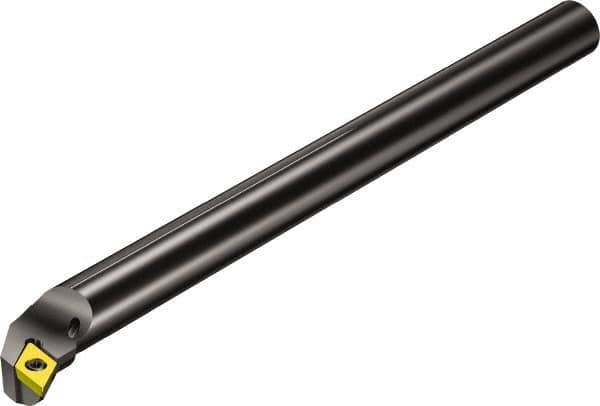

Sandvik Coromant - 15mm Min Bore Diam, 125mm OAL, 10mm Shank Diam, A..SDUPR/L -R Indexable Boring Bar - DPMT 2(1.5)1, DPMT 07 02 04 Insert, Screw or Clamp Holding Method
Item #: 49676547
Brand: Sandvik Coromant
Model #: 5721595
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A..SDUPR/L -R |
| Series | CoroTurn 111 |
| Minimum Bore Diameter (mm) | 15.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.5906 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Insert Compatibility | DPMT 2(1.5)1; DPMT 07 02 04 |
| Through Coolant | Yes |
| Insert Holding Method | Screw or Clamp |
| Rake | Positive |
| Neck Diameter (Decimal Inch) | 0.3937 |
| Lead Angle | -3 |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (mm) | 9.00 |
| Center to Cutting Edge (Decimal Inch) | 0.3543 |
| Rake Angle | 4 |
| Complete Insert Compatibility | DPMT 2(1.5)1; DPMT 07 02 04 |
| Toolholder Material | Steel |
