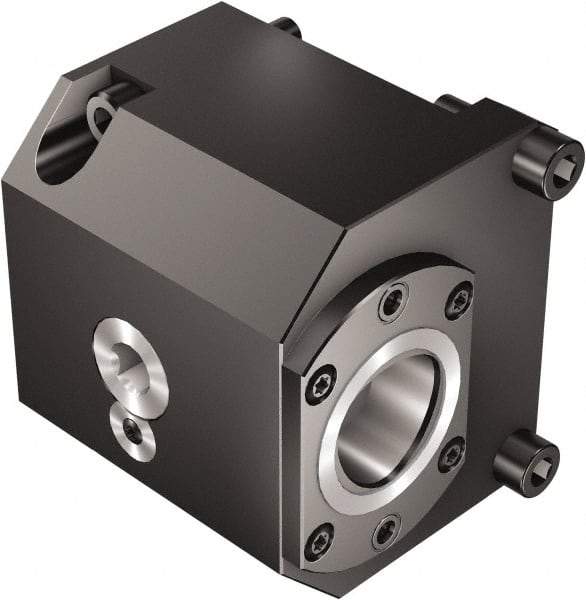

Sandvik Coromant - Right Hand Cut, C4 Modular Connection, Adapter/Mount Lathe Modular Clamping Unit - 40mm Square Shank Diam, 3.071" OAL, Through Coolant
Item #: 49667736
Brand: Sandvik Coromant
Model #: 6773845
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Clamping Unit Type | Adapter/Mount |
Connection Size | C4 |
Cutting Direction | Right Hand |
Shank Diameter (mm) | 40.00 |
Shank Diameter (Decimal Inch) | 1.5748 |
Through Coolant | Yes |
Head Height (mm) | 90.00 |
Head Height (Decimal Inch) | 3.5433 |
Overall Length (mm) | 78.00 |
Overall Length (Decimal Inch) | 3.07087 |
Head Length (Decimal Inch) | 1.4961 |
Head Length (mm) | 38.00 |
