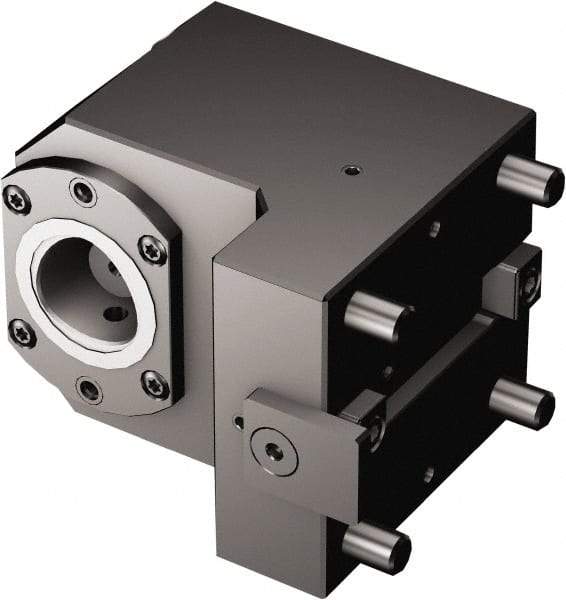

Sandvik Coromant - Right Hand Cut, C4 Modular Connection, Adapter/Mount Lathe Modular Clamping Unit - 40mm Square Shank Diam, 5.354" OAL, Through Coolant
Item #: 49665300
Brand: Sandvik Coromant
Model #: 6866755
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Clamping Unit Type | Adapter/Mount |
Connection Size | C4 |
Cutting Direction | Right Hand |
Shank Diameter (mm) | 40.00 |
Shank Diameter (Decimal Inch) | 1.5748 |
Through Coolant | Yes |
Head Height (mm) | 84.00 |
Head Height (Decimal Inch) | 3.3071 |
Overall Length (mm) | 136.00 |
Overall Length (Decimal Inch) | 5.35433 |
Head Length (Decimal Inch) | 3.9370 |
Head Length (mm) | 100.00 |
Shank Length (mm) | 79.00 |
Shank Length (Decimal Inch) | 3.1102 |
