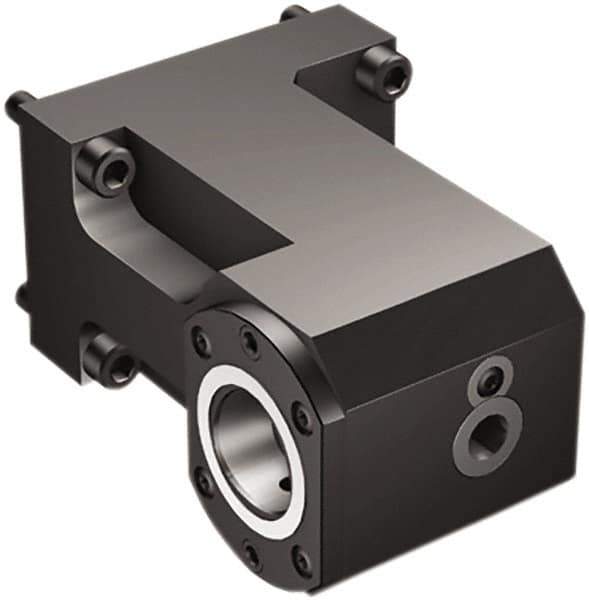

Sandvik Coromant - Left Hand Cut, C5 Modular Connection, Adapter/Mount Lathe Modular Clamping Unit - 5.394" OAL, Through Coolant
Item #: 49660228
Brand: Sandvik Coromant
Model #: 6866747
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Clamping Unit Type | Adapter/Mount |
Connection Size | C5 |
Cutting Direction | Left Hand |
Through Coolant | Yes |
Head Height (mm) | 108.00 |
Head Height (Decimal Inch) | 4.2520 |
Overall Length (mm) | 137.00 |
Overall Length (Decimal Inch) | 5.3937 |
Head Length (Decimal Inch) | 3.5433 |
Head Length (mm) | 90.00 |
Shank Length (mm) | 15.00 |
Shank Length (Decimal Inch) | 0.5906 |
