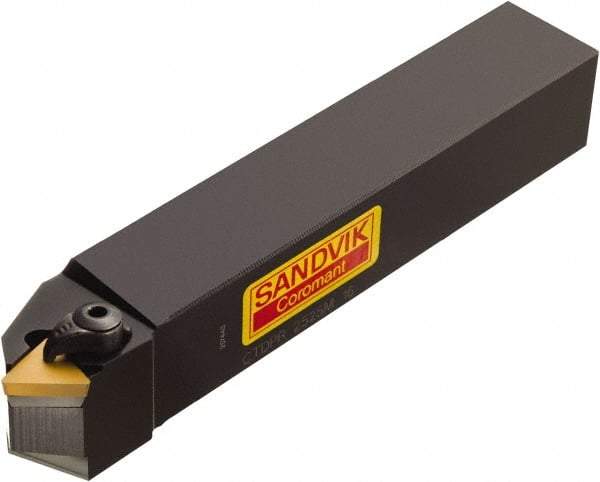

Sandvik Coromant - CTDPR/L, Right Hand Cut, 45° Lead Angle, 12mm Shank Height x 12mm Shank Width, Positive Rake Indexable Turning Toolholder - 80mm OAL, TPUN 11 03 04, TPU 221 Insert Compatibility, Series T-Max S
Item #: 49651979
Brand: Sandvik Coromant
Model #: 5726299
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | CTDPR/L |
| Rake | Positive |
| Series | T-Max S |
| Lead Angle | 45 |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Insert Compatibility | TPUN 11 03 04; TPU 221 |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 80.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 3.1496 |
| Head Length (mm) | 19.10 |
| Head Length (Decimal Inch) | 0.7520 |
| Toolholder Material | Steel |
