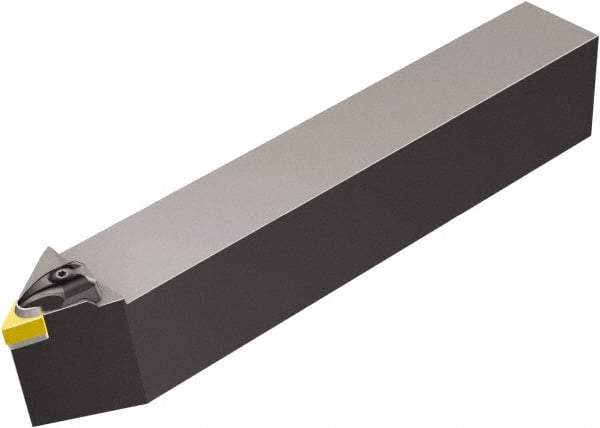

Sandvik Coromant - CDNNN, Neutral Cut, 27.5° Lead Angle, 50mm Shank Height x 40mm Shank Width, Negative Rake Indexable Turning Toolholder - 300mm OAL, DNGN 15 07 08, DNG 452 Insert Compatibility, Series T-Max
Item #: 49650435
Brand: Sandvik Coromant
Model #: 5724325
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | CDNNN |
| Rake | Negative |
| Series | T-Max |
| Lead Angle | 27.5 |
| Shank Width (mm) | 40.00 |
| Shank Width (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 50.00 |
| Shank Height (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Insert Compatibility | DNGN 15 07 08; DNG 452 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 300.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 11.8110 |
| Center to Cutting Edge (Decimal Inch) | 0.8071 |
| Head Length (mm) | 40.80 |
| Head Length (Decimal Inch) | 1.6063 |
| Toolholder Material | Steel |
