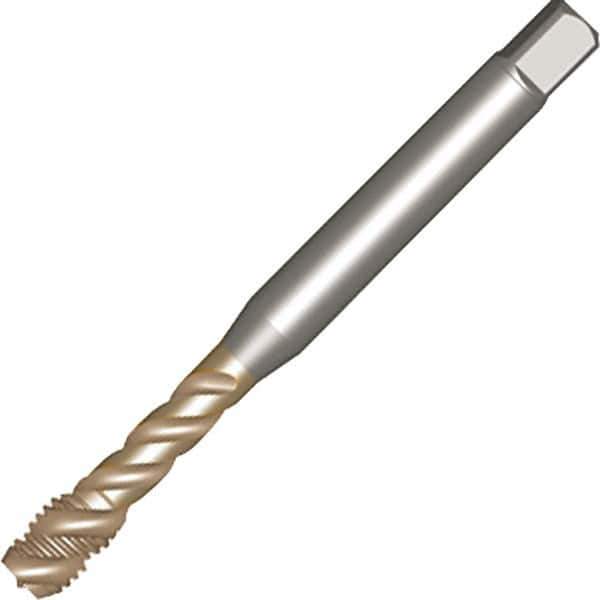

Sandvik Coromant - M6x1 M 3 Flute 6G Spiral Flute Tap - High Speed Steel, Uncoated, 81.5mm OAL, Right Hand Thread, Series CoroTap 300
Item #: 49649544
Brand: Sandvik Coromant
Model #: 6635157
Exact Tooling IR#: 04
Features and Benefits
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M6x1 |
| Class of Fit | 6G |
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Finish/Coating | Uncoated |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.2087 |
| Overall Length (mm) | 81.50 |
| Helix Angle | 45 |
| Thread Standard | M |
| Thread Length (Decimal Inch) | 0.3937 |
| Thread Length (mm) | 10.00 |
| Series/List | CoroTap 300 |
| Tapping Depth (Decimal Inch) | 1.2205 |
| Tapping Depth (mm) | 31.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Material Application | Steel; High Temperature Alloys; Non-Ferrous Metals |
