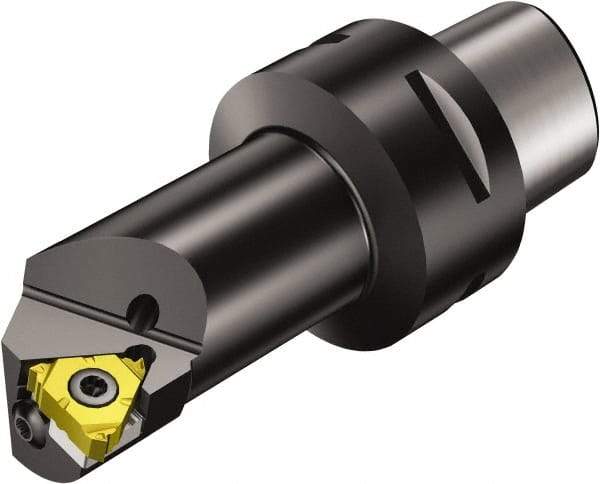

Sandvik Coromant - Insert Style 266.LL-16.., 60mm Head Length, Left Hand Cut, Internal/External Modular Threading Cutting Unit Head - System Size C3, 14mm Center to Cutting Edge, Series CoroThread 266
Item #: 49623960
Brand: Sandvik Coromant
Model #: 5727203
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C3 |
| Series Name | CoroThread 266 |
| Thread Type | Internal/External |
| Cutting Direction | Left Hand |
| Center to Cutting Edge (mm) | 14.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5512 |
| Head Length/Projection (mm) | 60.00 |
| Head Length/Projection (Decimal Inch) | 2.3622 |
| Insert Style | 266.LL-16.. |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Neck Diameter (mm) | 20.00 |
| Neck Diameter (Decimal Inch) | 0.787402 |
| Minimum Hole Diameter (mm) | 25.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.9843 |
| Maximum Hole Depth (mm) | 60.00 |
| Maximum Hole Depth (Decimal Inch) | 2.3622 |
