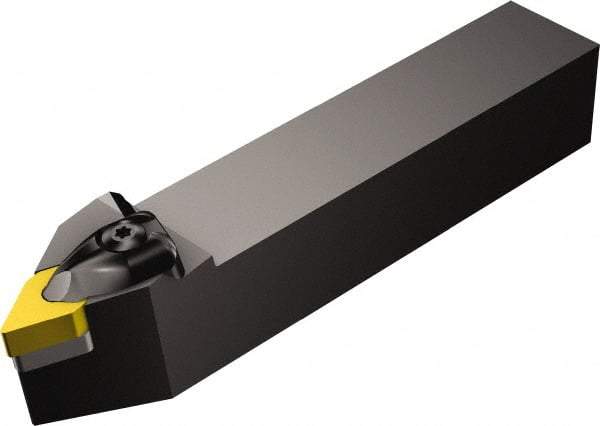

Sandvik Coromant - DDNNN, Neutral Cut, 27.5° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 150mm OAL, DNMG 15 04 08, DNMG 432 Insert Compatibility, Series T-Max P
Item #: 49623077
Brand: Sandvik Coromant
Model #: 5731256
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | DDNNN |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | 27.5 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | DNMG 15 04 08; DNMG 432 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 150.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.9055 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Head Length (mm) | 40.80 |
| Head Length (Decimal Inch) | 1.6063 |
| Toolholder Material | Steel |
