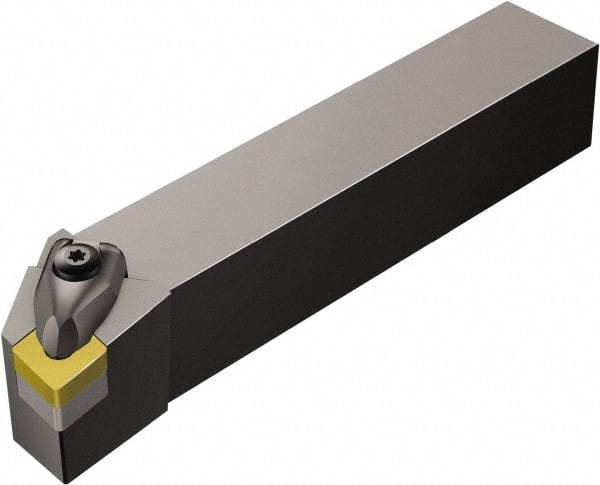

Sandvik Coromant - DCLNR/L, Right Hand Cut, -5° Lead Angle, 20mm Shank Height x 20mm Shank Width, Negative Rake Indexable Turning Toolholder - 125mm OAL, CNMG 09 03 08, CNMG 322 Insert Compatibility, Series T-Max P
Item #: 49621725
Brand: Sandvik Coromant
Model #: 5731625
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DCLNR/L |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | -5 |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | CNMG 09 03 08; CNMG 322 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (Decimal Inch) | 0.9843 |
| Head Length (mm) | 24.80 |
| Head Length (Decimal Inch) | 0.9764 |
| Toolholder Material | Steel |
