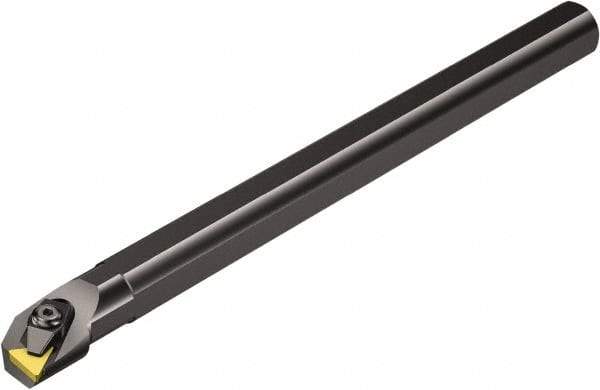

Sandvik Coromant - 12mm Min Bore Diam, 125mm OAL, 10mm Shank Diam, R/L136.9 Indexable Boring Bar - TCGR 1.2(1)0, TCGR 06 01 02 Insert, Clamp Holding Method
Item #: 49620776
Brand: Sandvik Coromant
Model #: 5741764
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | R/L136.9 |
| Series | T-Max S |
| Minimum Bore Diameter (mm) | 12.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.4724 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Insert Compatibility | TCGR 1.2(1)0; TCGR 06 01 02 |
| Through Coolant | No |
| Insert Holding Method | Clamp |
| Rake | Neutral |
| Neck Diameter (Decimal Inch) | 0.3937 |
| Lead Angle | -1 |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (mm) | 6.50 |
| Center to Cutting Edge (Decimal Inch) | 0.2559 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TCGR 1.2(1)0; TCGR 06 01 02 |
| Toolholder Material | Steel |
