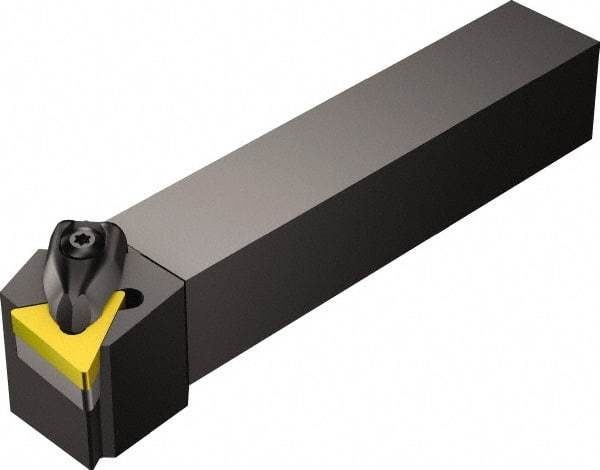

Sandvik Coromant - DTFNR/L, Right Hand Cut, -1° Lead Angle, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 170mm OAL, TNMG 27 06 12, TNMG 543 Insert Compatibility, Series T-Max P
Item #: 49620735
Brand: Sandvik Coromant
Model #: 5731429
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DTFNR/L |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | -1 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | TNMG 27 06 12; TNMG 543 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 170.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.6929 |
| Center to Cutting Edge (Decimal Inch) | 1.5748 |
| Head Length (mm) | 38.10 |
| Head Length (Decimal Inch) | 1.5000 |
| Toolholder Material | Steel |
