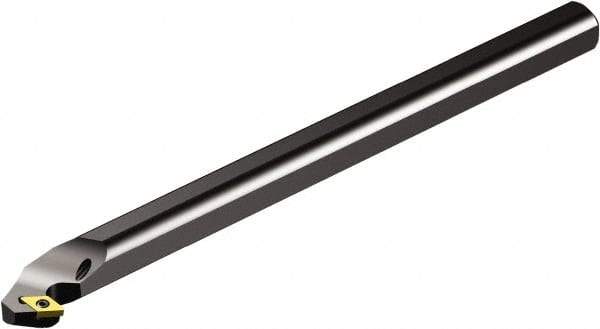

Sandvik Coromant - 33mm Min Bore Diam, 317mm OAL, 25.4mm Shank Diam, A..SDUCR/L..X Indexable Boring Bar - DCMT 2(1.5)1, DCMT 07 02 04 Insert, Screw or Clamp Holding Method
Item #: 49620719
Brand: Sandvik Coromant
Model #: 5721812
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A..SDUCR/L..X |
| Series | CoroTurn 107 |
| Minimum Bore Diameter (mm) | 33.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2992 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 317.00 |
| Overall Length (Decimal Inch) | 12.4803 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | DCMT 2(1.5)1; DCMT 07 02 04 |
| Through Coolant | Yes |
| Insert Holding Method | Screw or Clamp |
| Rake | Neutral |
| Neck Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | -3 |
| Back of Bar to Cutting Edge (mm) | 304.80 |
| Back of Bar to Cutting Edge (Decimal Inch) | 12.0000 |
| Center to Cutting Edge (mm) | 19.05 |
| Center to Cutting Edge (Decimal Inch) | 0.7500 |
| Rake Angle | 0 |
| Complete Insert Compatibility | DCMT 2(1.5)1; DCMT 07 02 04 |
| Toolholder Material | Steel |
