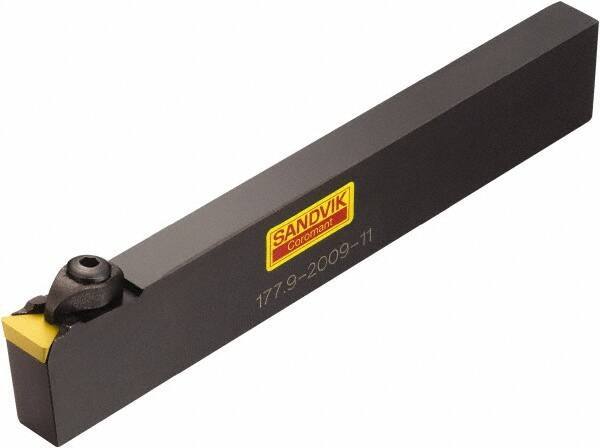

Sandvik Coromant - 177.9, Neutral Cut, 0° Lead Angle, 20mm Shank Height x 9mm Shank Width, Positive Rake Indexable Turning Toolholder - 120mm OAL, TPUN 11 03 04, TPU 221 Insert Compatibility, Series T-Max S
Item #: 49619588
Brand: Sandvik Coromant
Model #: 5757477
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | 177.9 |
| Rake | Positive |
| Series | T-Max S |
| Lead Angle | 0 |
| Shank Width (mm) | 9.00 |
| Shank Width (Decimal Inch) | 0.3543 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Insert Compatibility | TPUN 11 03 04; TPU 221 |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 120.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.7244 |
| Center to Cutting Edge (Decimal Inch) | 0.3701 |
| Head Length (mm) | 19.00 |
| Head Length (Decimal Inch) | 0.7480 |
| Toolholder Material | Steel |
