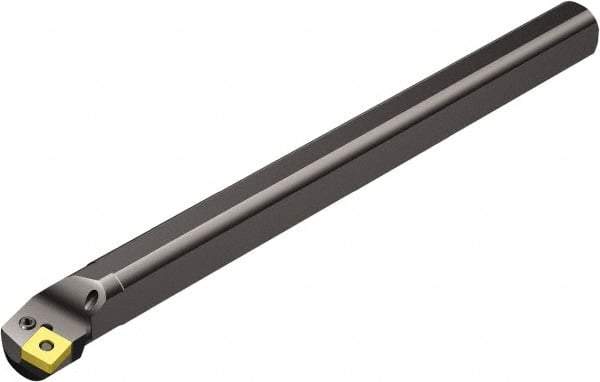

Sandvik Coromant - 32mm Min Bore Diam, 303.05mm OAL, 25mm Shank Diam, A..PSKNR/L Indexable Boring Bar - SNMG 432, SNMG 12 04 08 Insert, Lever Holding Method
Item #: 49618721
Brand: Sandvik Coromant
Model #: 6049199
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A..PSKNR/L |
| Series | T-Max P |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 303.05 |
| Overall Length (Decimal Inch) | 11.9311 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | SNMG 432; SNMG 12 04 08 |
| Through Coolant | Yes |
| Insert Holding Method | Lever |
| Rake | Negative |
| Neck Diameter (Decimal Inch) | 0.9843 |
| Lead Angle | 15 |
| Back of Bar to Cutting Edge (mm) | 300.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 11.8110 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Rake Angle | -6 |
| Complete Insert Compatibility | SNMG 432; SNMG 12 04 08 |
| Toolholder Material | Steel |
