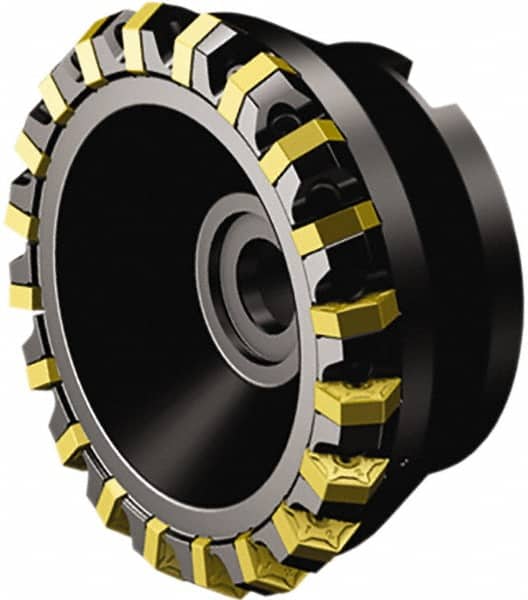

200mm Cut Diam, 60mm Arbor Hole, 6mm Max Depth of Cut, 60° Indexable Chamfer & Angle Face Mill Takes 32 Inserts, HNEF 090508 Insert, Right Hand Cut, Series CoroMill S-60
Item #: 49539414
Brand: Sandvik Coromant
Model #: 6169939
Product Specifications
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Compatible Insert Size Code | HNEF 090508 |
| Cutter Style | S-60..Qxx |
| Cutting Direction | Right Hand |
| Series | CoroMill S-60 |
| Keyway Width (mm) | 25.70 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Overall Height (Mm - 5 Decimals) | 63.00 |
| Maximum RPM | 6700 |
| Complete Insert Compatibility | HNEF 090508 |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 32 |
| Coolant Through | No |
