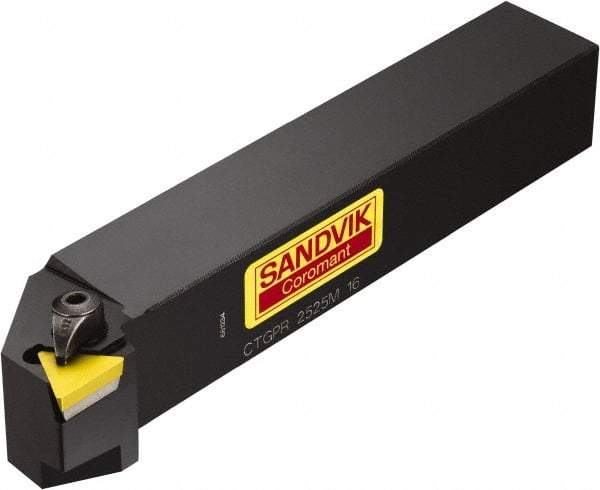

Sandvik Coromant - CTGP, Right Hand Cut, -1° Lead Angle, 20mm Shank Height x 20mm Shank Width, Positive Rake Indexable Turning Toolholder - 125mm OAL, TPUN 160308 Insert Compatibility, Series T-Max S
Item #: 49449515
Brand: Sandvik Coromant
Model #: 5726201
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | CTGP |
| Rake | Positive |
| Rake Angle | 6 |
| Series | T-Max S |
| Lead Angle | -1 |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | TPUN 160308 |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 25.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9843 |
| Head Length (mm) | 25.10 |
| Head Length (Decimal Inch) | 0.9882 |
| Toolholder Material | Steel |
