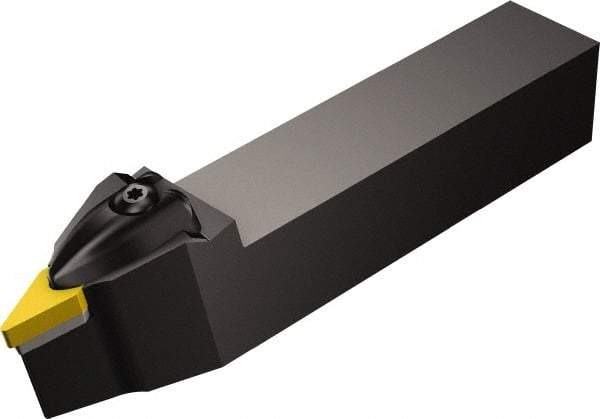

Sandvik Coromant - DVVN, Neutral Cut, 17.50° Lead Angle, 20mm Shank Height x 20mm Shank Width, Negative Rake Indexable Turning Toolholder - 125mm OAL, VNMG 16 04 08 Insert Compatibility, Series T-Max P
Item #: 49449440
Brand: Sandvik Coromant
Model #: 5732463
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | DVVN |
| Rake | Negative |
| Rake Angle | -4 |
| Series | T-Max P |
| Lead Angle | 17.50 |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | VNMG 16 04 08 |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 10.60 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4173 |
| Head Length (mm) | 47.80 |
| Head Length (Decimal Inch) | 1.8819 |
| Toolholder Material | Steel |
