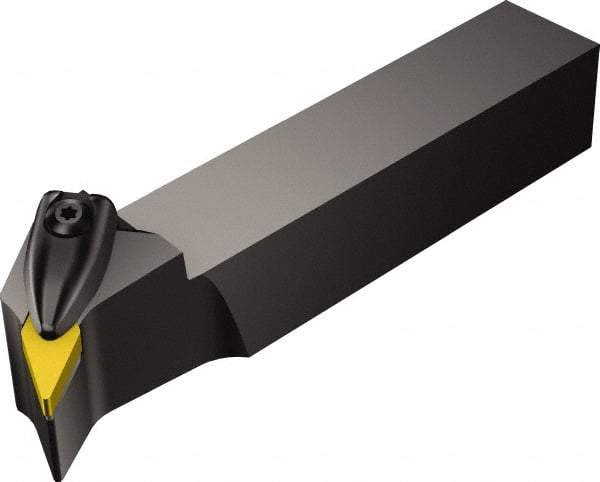

Sandvik Coromant - DVPN, Right Hand Cut, -27.50° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 150mm OAL, VNMG 16 04 08 Insert Compatibility, Series T-Max P
Item #: 49440019
Brand: Sandvik Coromant
Model #: 5732469
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Hand of Holder | Right Hand |
Toolholder Style | DVPN |
Rake | Negative |
Rake Angle | -4 |
Series | T-Max P |
Lead Angle | -27.50 |
Shank Width (mm) | 25.00 |
Shank Width (Decimal Inch) | 0.9843 |
Shank Height (mm) | 25.00 |
Shank Height (Decimal Inch) | 0.9843 |
Overall Length (mm) | 150.00 |
Overall Length (Decimal Inch) | 5.9055 |
Insert Compatibility | VNMG 16 04 08 |
Multi-Use Tool | No |
Insert Holding Method | Wedge |
Back of Bar to Cutting Edge (mm) | 32.00 |
Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
Head Length (mm) | 39.20 |
Head Length (Decimal Inch) | 1.5433 |
Toolholder Material | Steel |
