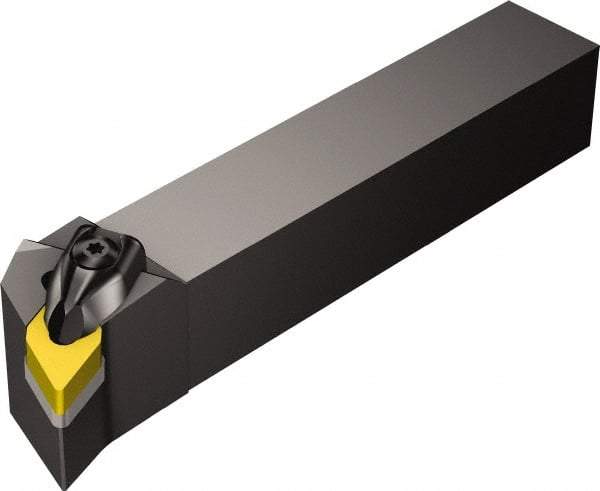

Sandvik Coromant - DDHN, Left Hand Cut, -17.50° Lead Angle, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 170mm OAL, DNMG 15 06 08 Insert Compatibility, Series T-Max P
Item #: 49439243
Brand: Sandvik Coromant
Model #: 5731143
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DDHN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | T-Max P |
| Lead Angle | -17.50 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | DNMG 15 06 08 |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 40.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5748 |
| Head Length (mm) | 36.10 |
| Head Length (Decimal Inch) | 1.4213 |
| Toolholder Material | Steel |
