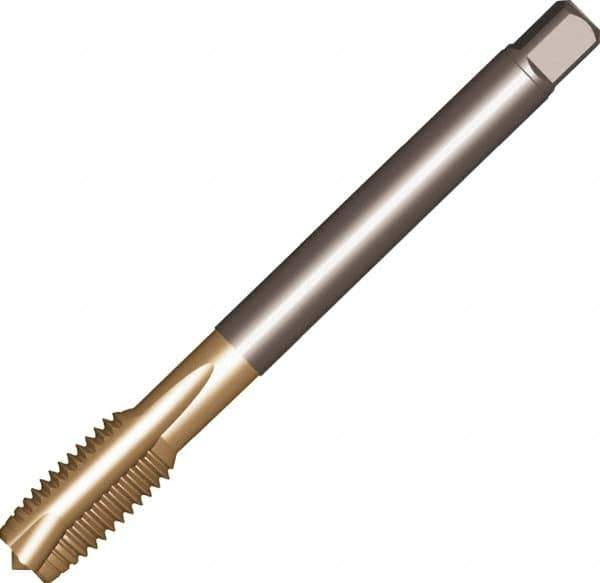

Sandvik Coromant - 1/4-19 G, 3 Flute, Uncoated, High Speed Steel Spiral Point Tap - Plug Chamfer, Right Hand Thread, 100mm OAL, 21mm Thread Length, 11mm Shank Diam, 2B Class of Fit, Series CoroTap 200
Item #: 49382831
Brand: Sandvik Coromant
Model #: 6634996
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1/4-19 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Class of Fit | 2B |
| Finish/Coating | Uncoated |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.9370 |
| Overall Length (mm) | 100.00 |
| Thread Standard | G |
| Thread Length (Decimal Inch) | 0.8268 |
| Thread Length (mm) | 21.00 |
| Series/List | CoroTap 200 |
| Neck Length (Decimal Inch) | 1.9685 |
| Style | Spiral Point |
| Tapping Depth (mm) | 71.00 |
| Shank Diameter (Decimal Inch) | 0.4331 |
| Shank Diameter (mm) | 11.00 |
| Material Application | Cast Iron; High Temperature Alloys; Non-Ferrous Metals; Steel |
